序号
NO.
|
零件名称
Part name
|
材质
Material
|
|
1
|
卡套 Ferrule
|
20# A105 SS304 SS304L SS316 SS316L
|
|
2
|
O形密封圈 O-Ring
|
橡胶Rubber
|
|
3
|
管接头 Connector
|
20# A105 SS304 SS304L SS316 SS316L
|
|
4
|
阀体 Body
|
20# A105 SS304 SS304L SS316 SS316L
|
|
5
|
阀盖垫片 Bonnet Gasket
|
紫铜(Red copper) PTFE
|
|
6
|
阀盖Bonnet
|
20# A105 SS304 SS304L SS316 SS316L
|
|
7
|
填料垫 Packing Seat
|
PTFE 柔性石墨(Expanded Graphite)
金属盘根(Matel and Graphite)
|
|
8
|
填料 Packing
|
PTFE 柔性石墨(Expanded Graphite)
|
|
9
|
填料压盖 Packing Gland
|
20# A105 SS304 SS304L SS316 SS316L
|
|
10
|
锁紧螺母 Lock Nut
|
20# A105 SS304 SS304L SS316 SS316L
|
|
11
|
阀杆 Stem
|
20# A105 SS304 SS304L SS316 SS316L
|
|
12
|
手轮 Handle
|
20# A105 SS304 SS304L SS316 SS316L
|
|
13
|
带帽螺母 Hooded Nut
|
20# A105 SS304 SS304L SS316 SS316L
|
|

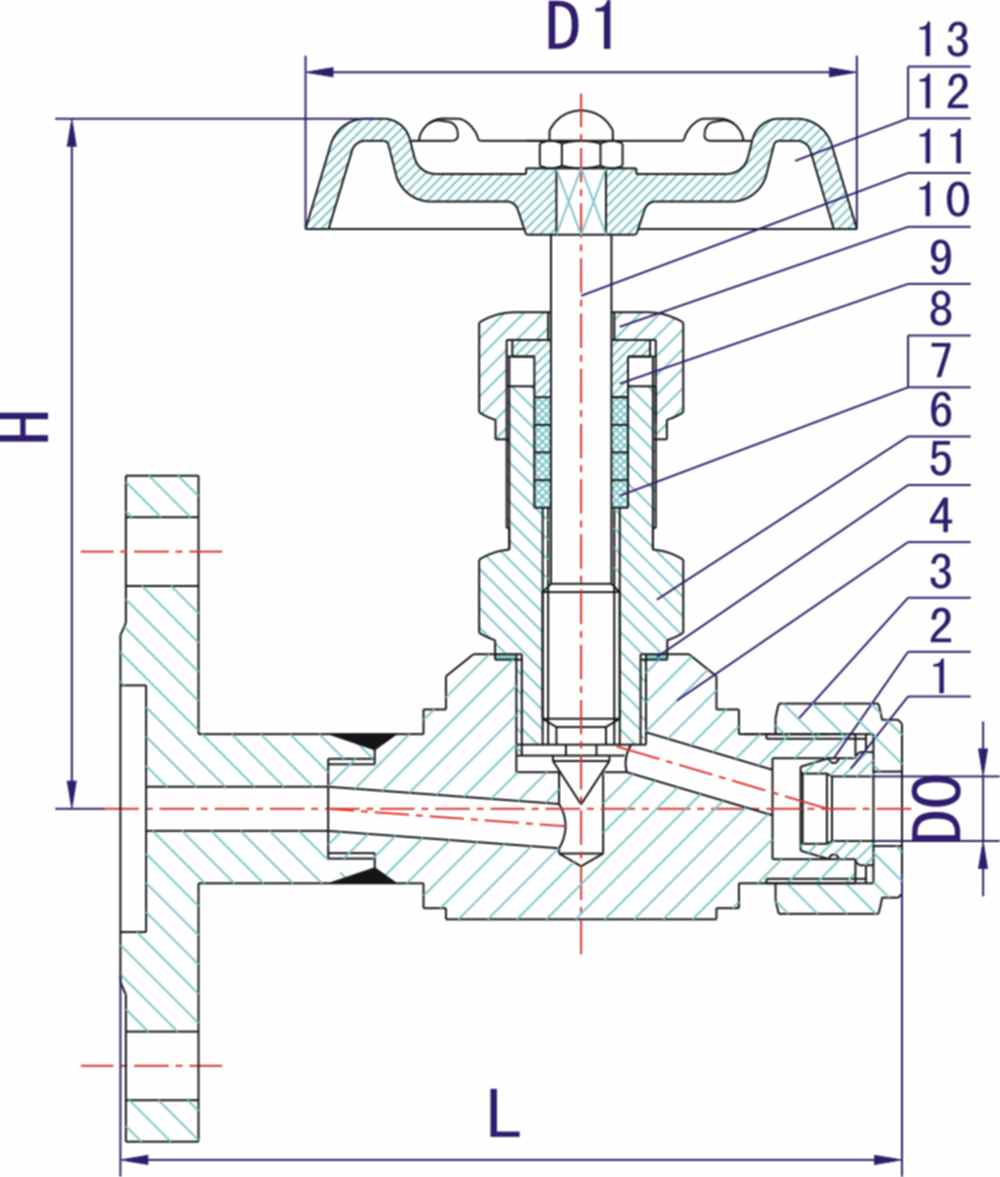

ITEM NO.
|
公称通径 DN
Nominal bore
|
D0
|
D1
|
L
|
H
|
|
JJ.BY1-1
|
DN6
|
ø12
|
60
|
105
|
87
|
|
JJ.BY1-2
|
DN6
|
ø14
|
70
|
110
|
90
|
